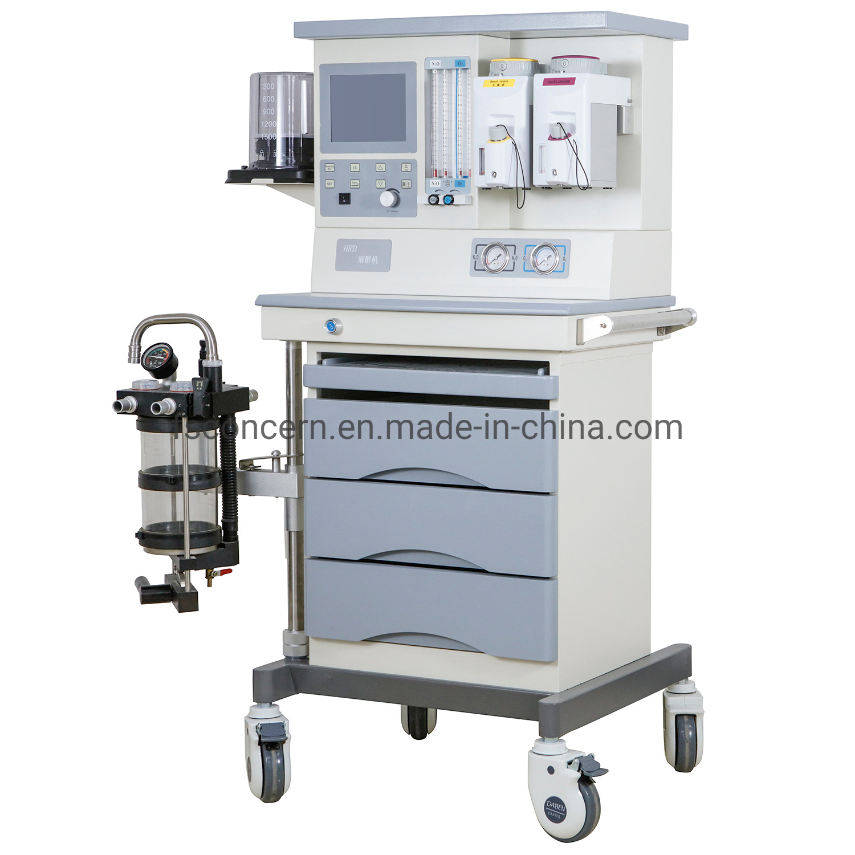

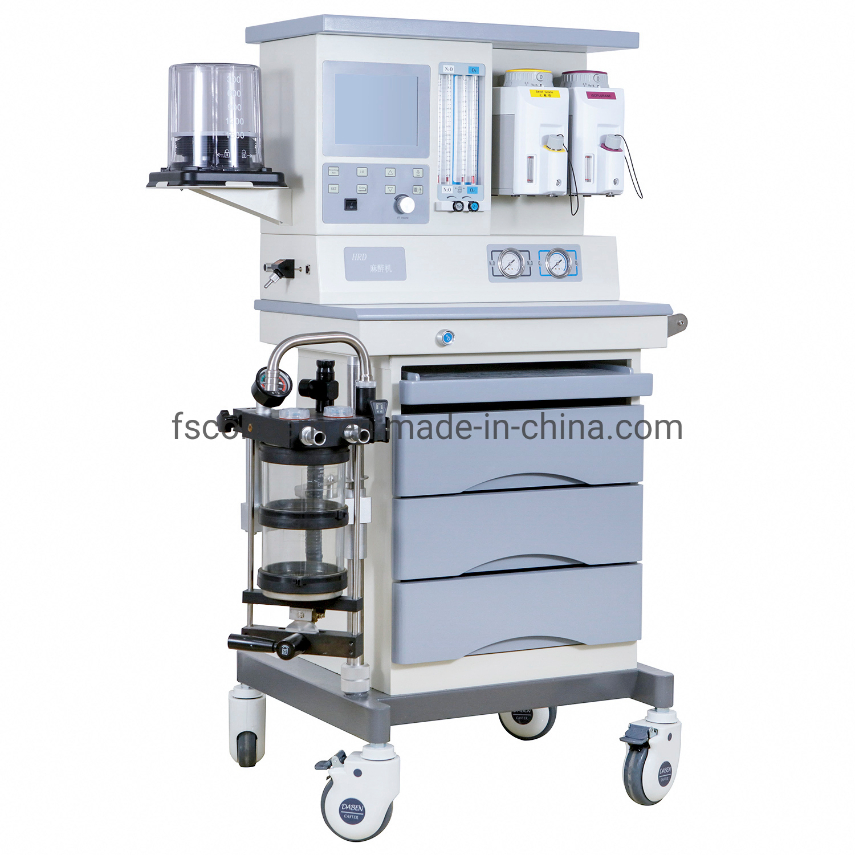

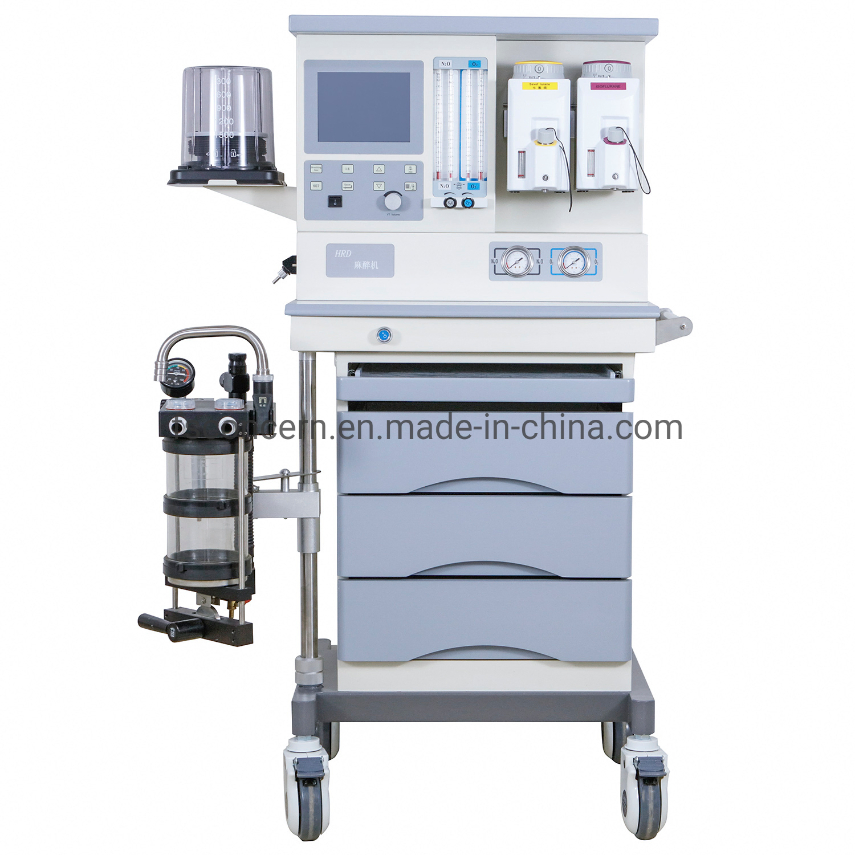

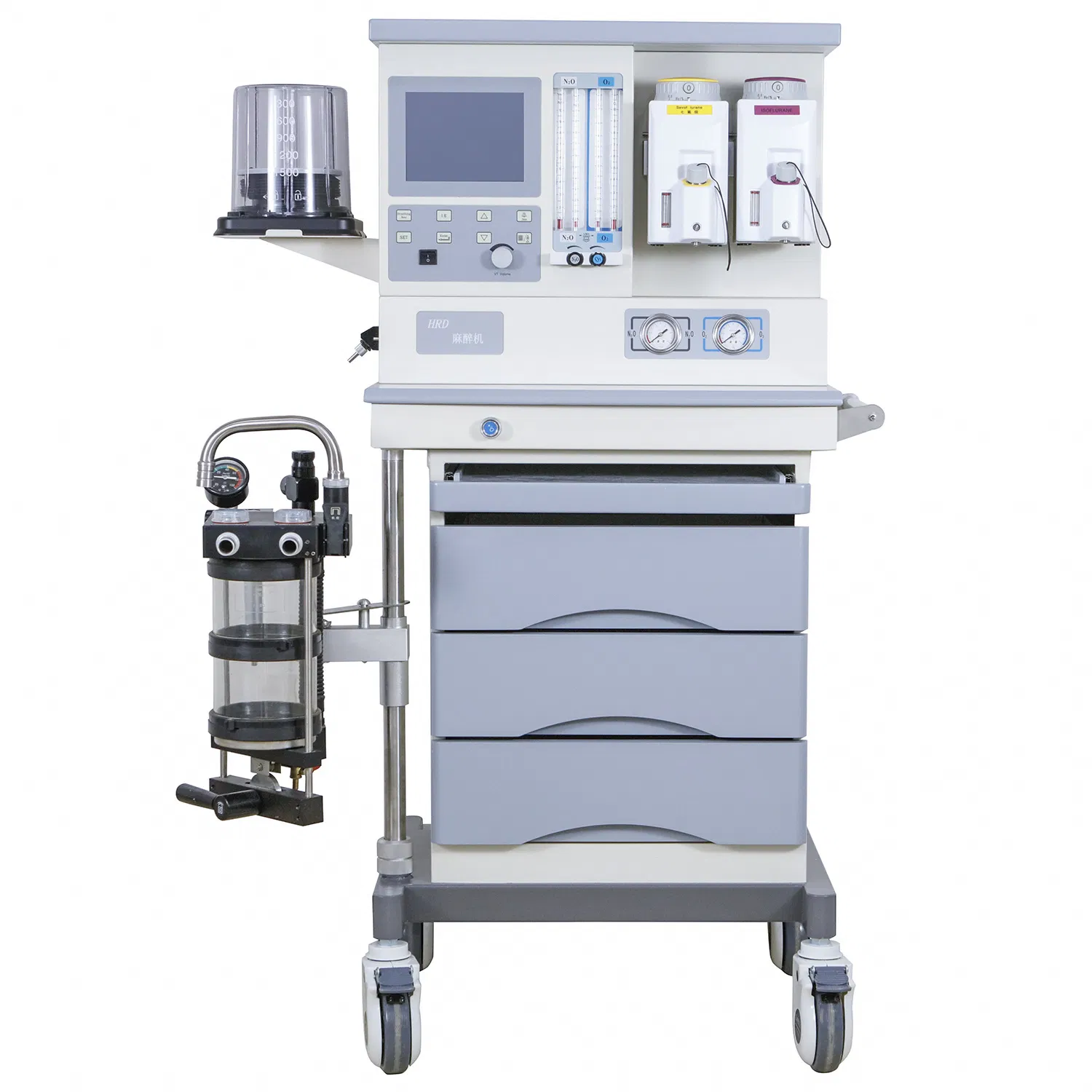

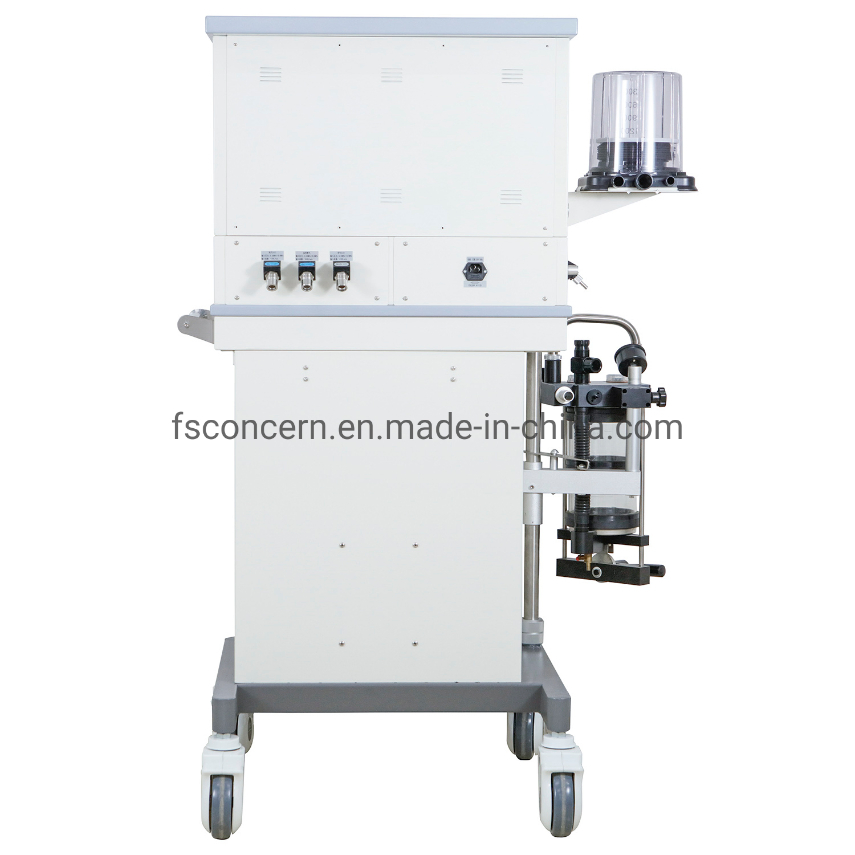

Multifunctional Hospital Medical Anesthesia Equipment Surgical Anestesia Machine Two Vaporizers

Type: Anesthesia Machine
Feature: Reusable
Certification: ISO13485

Product Description

Anesthesia Equipment
Basic Information
Model NO.
CCO-M3A
Warranty
1 Year
Transport Package
Standard Export Package
Origin
China
Multifunctional Medical Anesthesia Equipment

Main Features:

  • 8.4" Large LCD screen, various monitoring waveform and parameters in different colors
  • IPPV, Pressure mode, SIMV modes can easily meet the ventilation requirement
  • Pneumatically Driven and Electrically Controlled
  • Manual Control or Automatic Control
  • Automatic Compensation of Flow, Temperature and Pressure Self-Lock and Interlock
  • Equipped with two vaporizers and two gas sources
Technical Specifications
Main Frame
Working Mode Closed System, Semi-Closed System and Semi-Open System
Application Adult and Children
Alarms Parameters Upper and Lower Airway Pressure; Upper and Lower Tidal Volume; Lack of Oxygen; Apnea; Power Outages
Gas Source Pressure O2: 0.3MPa - 0.5MPa, N2O: 0.3MPa - 0.5MPa
Power 220V±10%, 50Hz±1%
Oxygen Flush 35L/min - 75L/min
Anesthesia Ventilator
Bellows Two Bellows: Adult and Children
Monitoring Parameters Tidal Volume; Respiratory Rate; I/E Ratio; Peak Airway Pressure
Respiratory Modes IPPV, SIGH, SIMV, PEEP (+0.5kPa - +2kPa), SIPPV
Respiratory Rate 4 - 60 bpm
Tidal Volume 30 - 1500 ml
I/E Ratio 3:1 - 1:4 Adjustable
Hospital Medical Equipment Solutions
Department Equipment Category Available Products
Radiology X-Ray Room X-ray machine, processor, film, cassette, Intensifying screen, lead clothing
Ultrasound B/W 2D ultrasound, 2/3/4D color ultrasound
Laboratory Lab Room Chemistry analyzer, hematology analyzer, ELISA reader, washer, centrifuge, pipette, urine analyzer
Surgery Operation Room Anesthesia machine, ventilator, operating lamp, table, pendant, medical drill, ECG, patient monitor, defibrillator, infusion pump
Equipment Detail 1
Equipment Detail 2
Technical Layout
Frequently Asked Questions
What types of patients is the CCO-M3A suitable for?
The CCO-M3A is a multifunctional anesthesia machine designed for both adult and pediatric patients, featuring adjustable tidal volumes from 30ml to 1500ml.
What ventilation modes does this equipment support?
It supports multiple respiratory modes including IPPV, SIGH, SIMV, PEEP (+0.5kPa to +2kPa), and SIPPV to meet various surgical requirements.
Does the machine include monitoring for safety?
Yes, it features an 8.4" LCD screen that displays waveforms and parameters in different colors, along with alarms for airway pressure, tidal volume, oxygen levels, and power status.
Is the anesthesia machine pneumatically or electrically controlled?
The CCO-M3A is pneumatically driven and electrically controlled, allowing for high precision and reliability during medical procedures.
How many vaporizers can be used with this model?
This model is equipped with two vaporizers and supports two gas sources, providing versatility for different anesthetic agents.
What is the warranty period for this medical equipment?
The machine comes with a standard 1-year warranty covering manufacturing defects and technical support.
