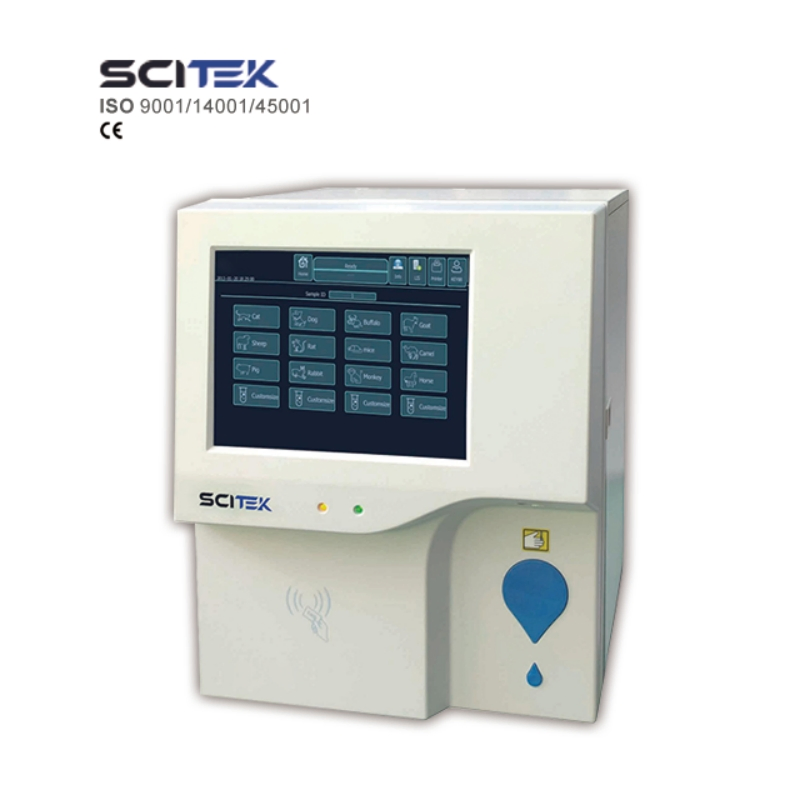

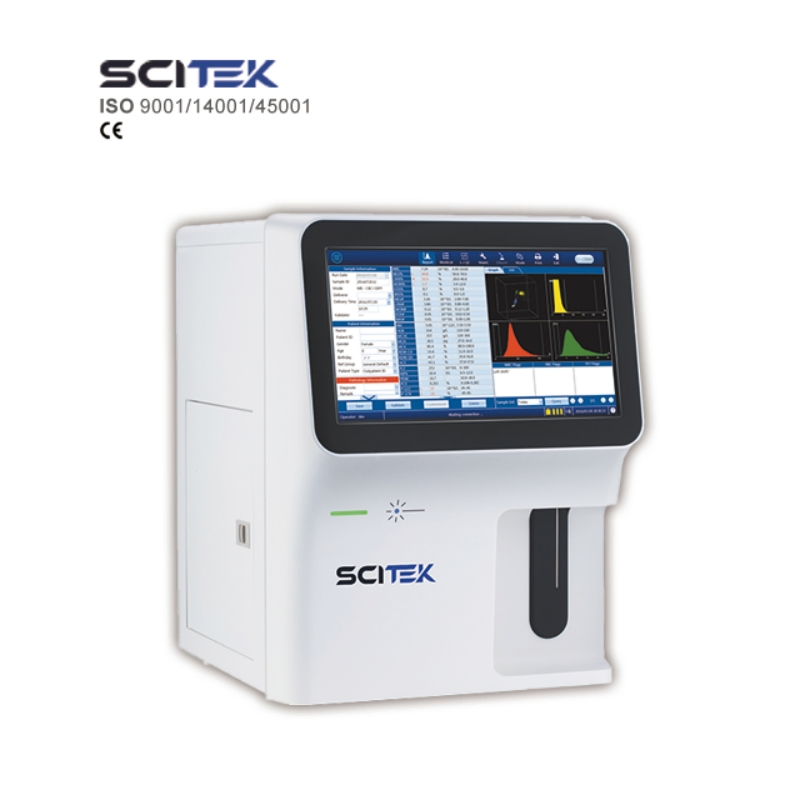

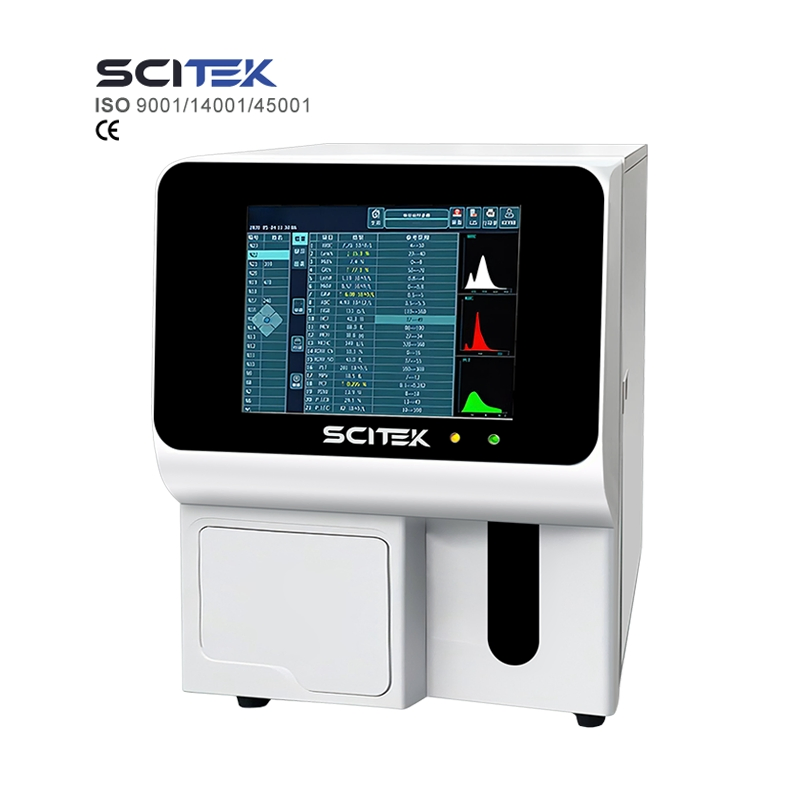

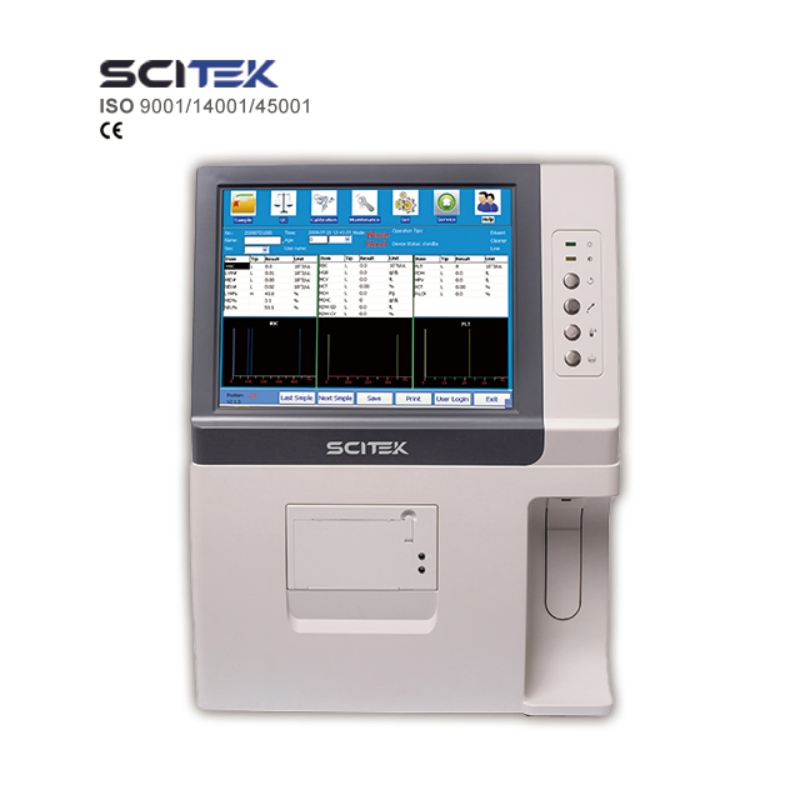

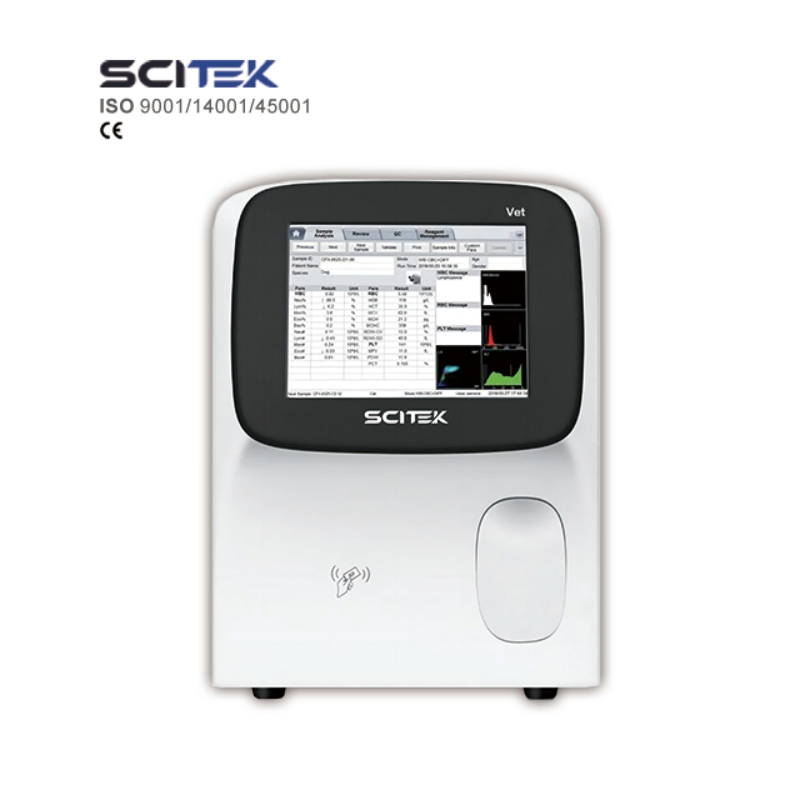

The HA-5000 hematology analyzer offers a comprehensive Complete Blood Count (CBC) with quantification of red blood cells, white blood cells, and platelets. It is a medical laboratory instrument designed for the rapid and accurate analysis of blood samples.
| Parameter | Specifications |
|---|---|
| 21 Parameters | WBC, LY#, MID#, GR#, LY%, MID%, GR%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC |
| Histogram | Histogram for WBC, RBC, PLT |
| Measurement Method | Coulter principle & Colorimetry hemoglobin determination |
| Sample Volume | Predilute 20μl, Whole blood 10μl |
| Language Support | English, Chinese, Portuguese, Hindi, Spanish, French, Thai, Russian, Vietnamese |
| Power Supply | AC100-240V, 50/60Hz |
| Dimensions | 354x430x440 mm |
| Performance Linearity & Precision | ||
|---|---|---|
| Parameter | Linearity Range | Precision (CV%) |
| WBC(10⁹/L) | 0.0-100.0 | 2.0(4.0-10.0) |
| RBC(10¹²/L) | 0.00-9.99 | 1.5(3.50-5.50) |
| HGB(g/L) | 0-300 | 1.0(110-160) |
| PLT(10⁹/L) | 0-1000 | 5.0(100-300) |
