Medical Equipment Hospital Top-Grade Jinling 850 Standard Anesthesia Machine for Children
Medical Equipment Hospital Top-Grade Jinling 850 Standard Anesthesia Machine for Children
Medical Equipment Hospital Top-Grade Jinling 850 Standard Anesthesia Machine for Children
Medical Equipment Hospital Top-Grade Jinling 850 Standard Anesthesia Machine for Children
Medical Equipment Hospital Top-Grade Jinling 850 Standard Anesthesia Machine for Children
1 / 5
Medical Equipment Hospital Top-Grade Jinling 850 Standard Anesthesia Machine for Children
Medical Equipment Hospital Top-Grade Jinling 850 Standard Anesthesia Machine for Children
Medical Equipment Hospital Top-Grade Jinling 850 Standard Anesthesia Machine for Children
Medical Equipment Hospital Top-Grade Jinling 850 Standard Anesthesia Machine for Children
Medical Equipment Hospital Top-Grade Jinling 850 Standard Anesthesia Machine for Children

Medical Equipment Hospital Top-Grade Jinling 850 Standard Anesthesia Machine for Children

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
JINLING 850
Certification
ISO13485
Group
Adult and Children
Display
8.4 Inch TFT Display
Tidal Volume
20~1500ml
Ventilation Mode
IPPV, SIPPV, VCV, IMV, SIMV, Manual, Standby
PEEP Range
0~20CMH2O
Power Supply
At least 4 Hours Backup

Product Overview

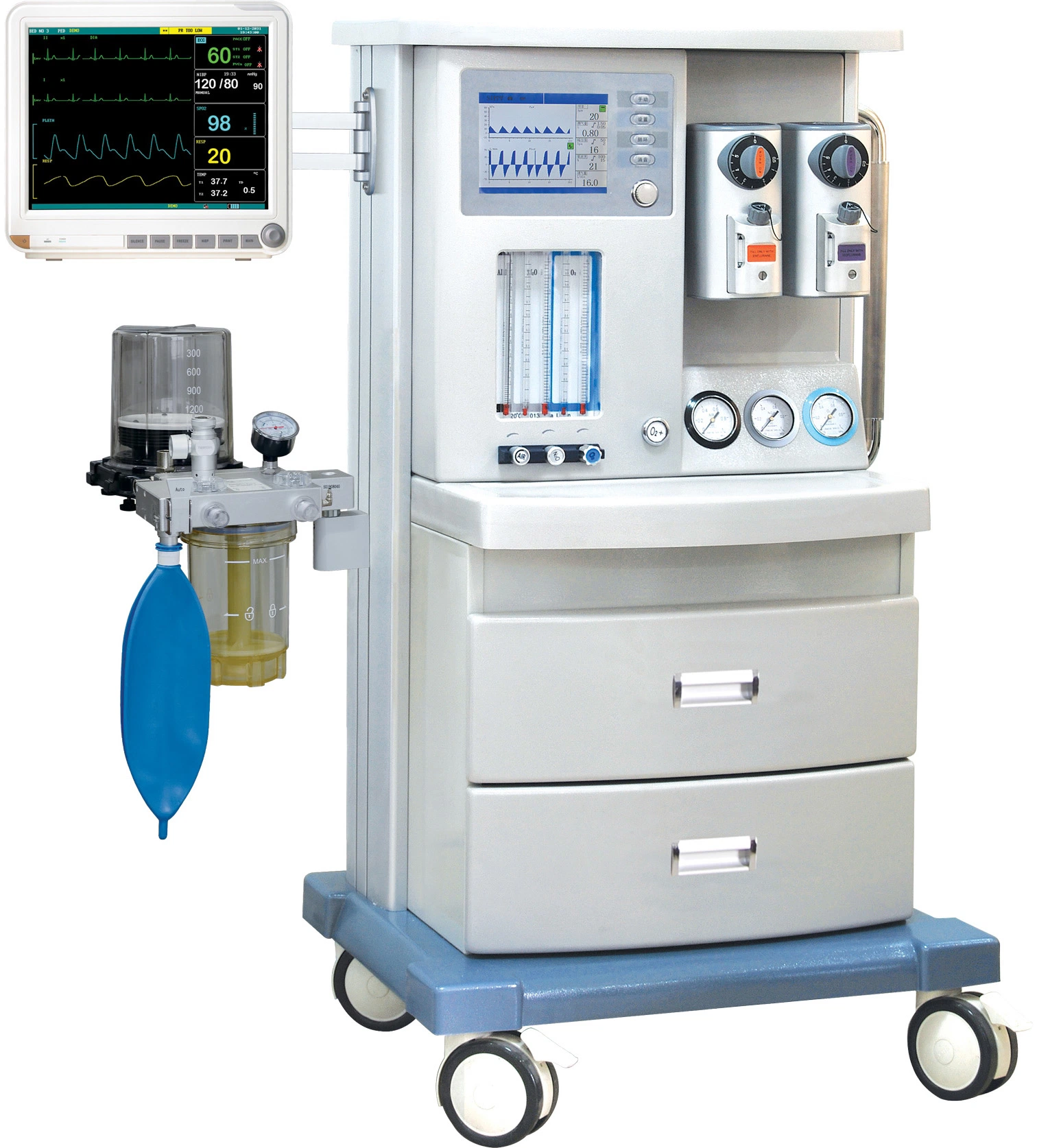

Medical Equipment Hospital Top-Grade Jinling 850 Standard Anesthesia Machine for Children

Anesthesia Machine View 1

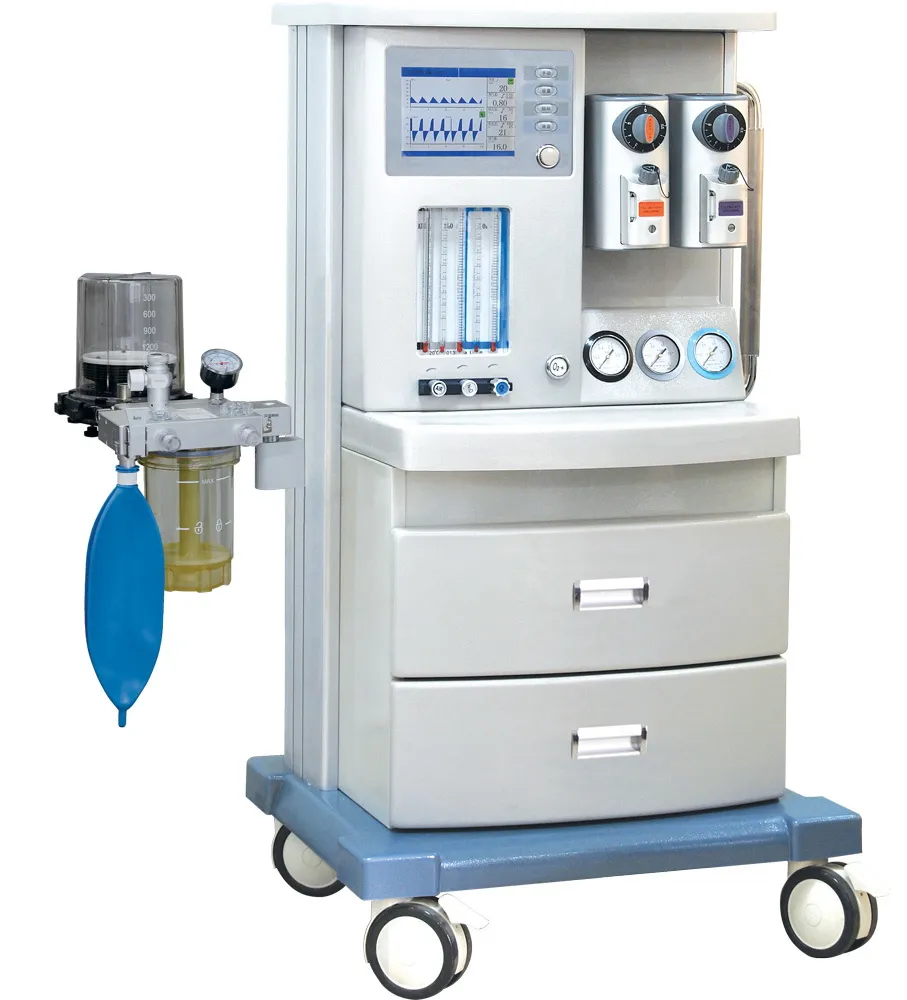

Anesthesia Machine View 2

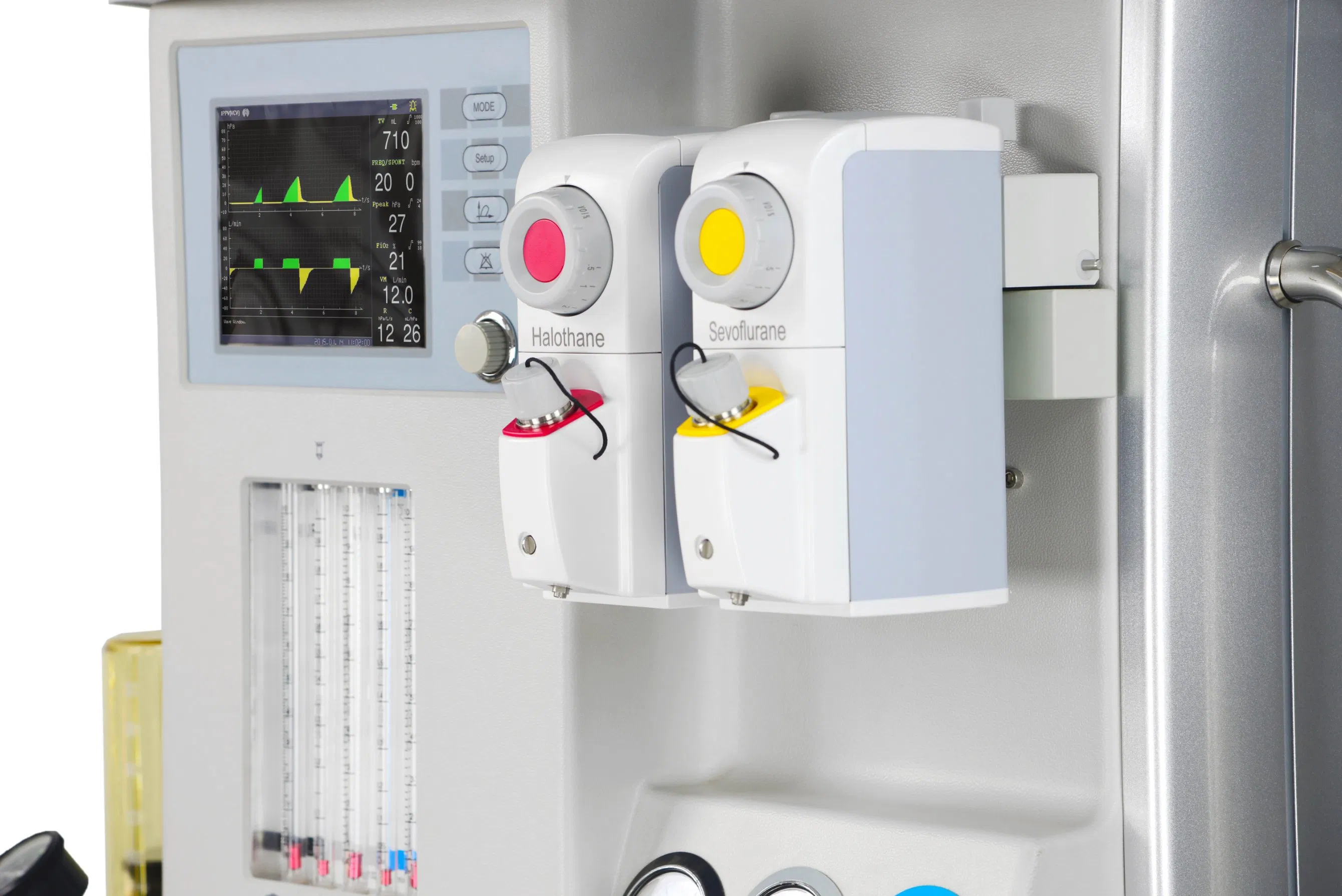

Detail View 1
Detail View 2
Operational Interface

Key Features

  • ✔ Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection.

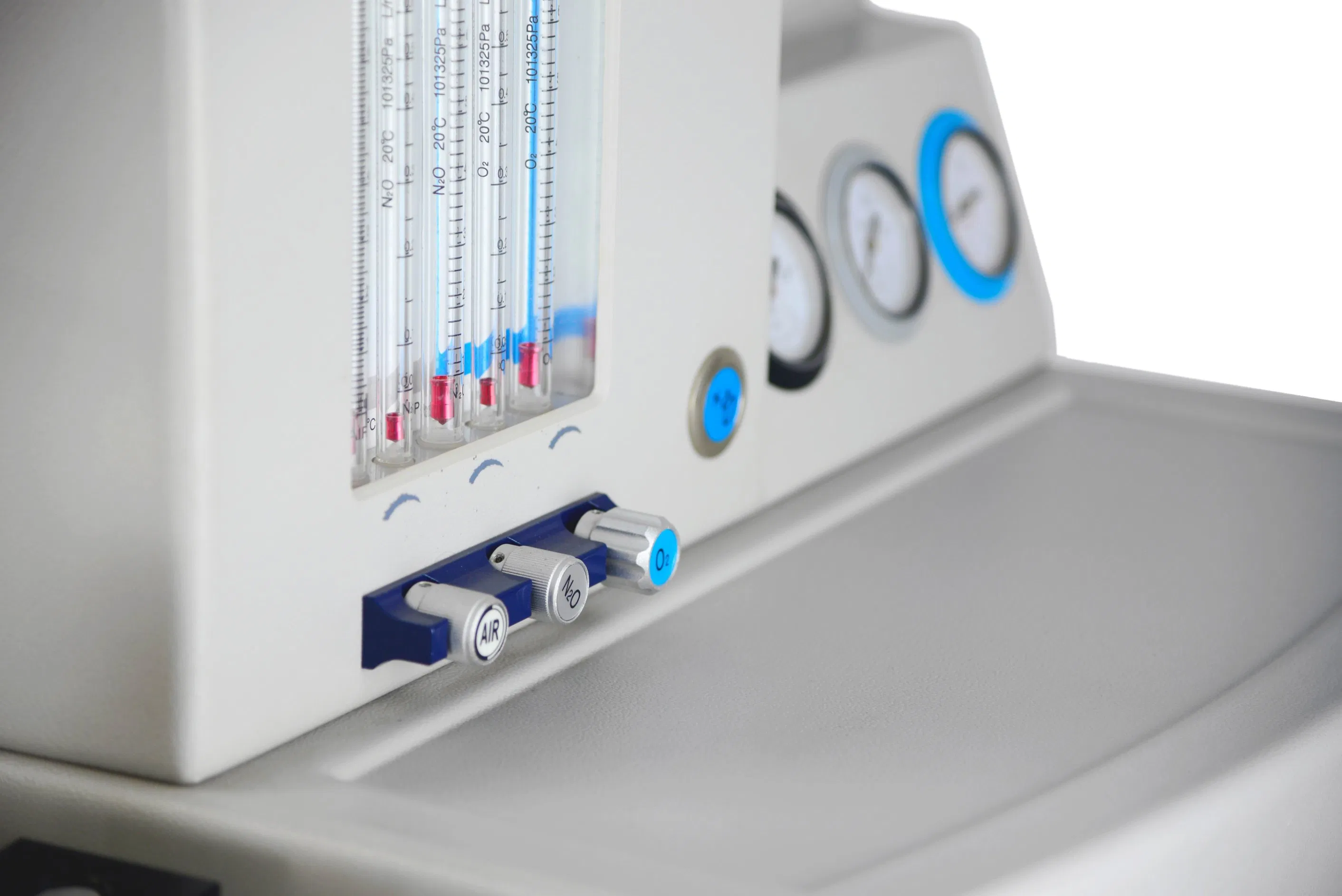

  • ✔ High precision five tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%.
  • ✔ Nonhazardous environmentally friendly frame with automated self-checking function during startup and an automatic self-calibrating sensor.
  • ✔ Advanced and stable Adjustable Pressure Limiting (APL) valve, suitable for low and ultra low flow anesthesia.
  • ✔ Equipped with advanced international rotating Na-lime tank, easy-operate with one hand, using imported PPSU material.

Technical Data

Specification Chart
Model850 (Standard Model)
Display8.4 inch TFT display
Flowmeter RangeO2: 0.1-10L/min; N2O: 0.1-10L/min; Air: 0.1-10L/min
Ventilation ModeIPPV, SIPPV, VCV, IMV, SIMV, MANUAL, Standby
Tidal VolumeAdjustable range: 10-1500ml; Display range: 0-2000ml
Respiratory Rate1-100bpm
I:E Ratio8:1-1:10 (capable of inverse ratio ventilation)
PEEP Range0-20cmH2O (electronically controlled)
Vaporizer SlotsDouble PA-I type slots (0-5% concentration)
Backup BatteryAt least 4 hours
Component Detail 1 Component Detail 2 Component Detail 3

Frequently Asked Questions

What patient groups is the Jinling 850 suitable for?
The Jinling 850 is designed for both adult and pediatric (children) patients, featuring a wide tidal volume range from 20ml to 1500ml.
How long can the machine operate during a power outage?
The machine is equipped with a backup power supply that ensures at least 4 hours of continuous operation in case of power failure.
What ventilation modes are available on this model?
It supports multiple modes including IPPV, SIPPV, VCV, IMV, SIMV, Manual, and Standby to meet various clinical requirements.
Does it support low-flow anesthesia?
Yes, the machine features an advanced Adjustable Pressure Limiting (APL) valve and a high-precision flowmeter, making it ideal for low and ultra-low flow anesthesia.
Is the respiratory circuit easy to maintain?
Yes, it uses a standard integrated metallic modular respiratory circuit that is easy to clean and can withstand high-temperature disinfection.
What safety features are included for oxygen supply?
The machine includes an interlocking oxygen-nitrous oxide supply system that guarantees the oxygen concentration in the output gas is never lower than 21%.
