Technique Specifications
Physical Specifications

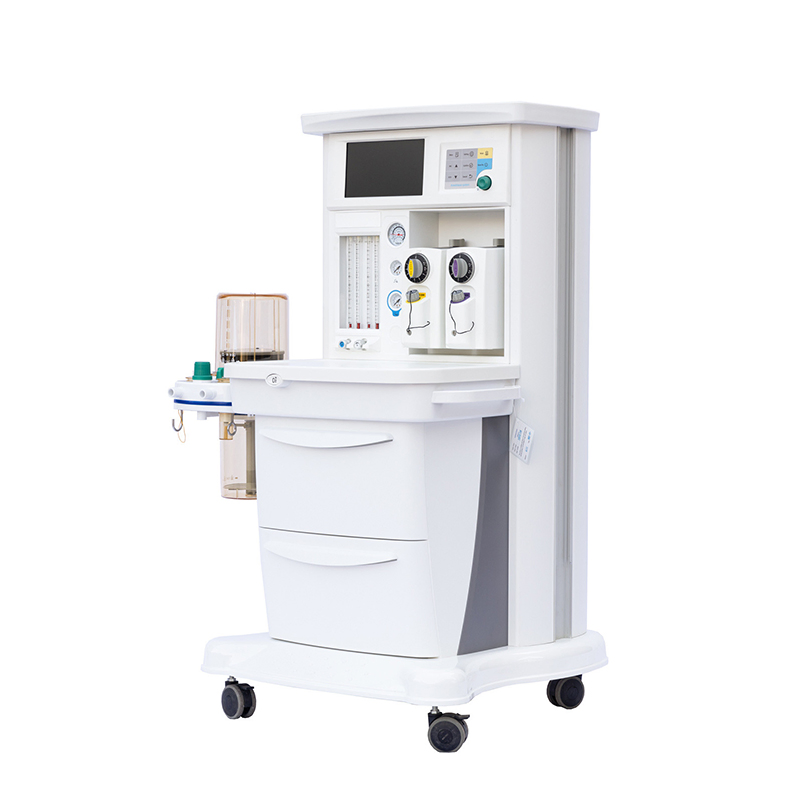

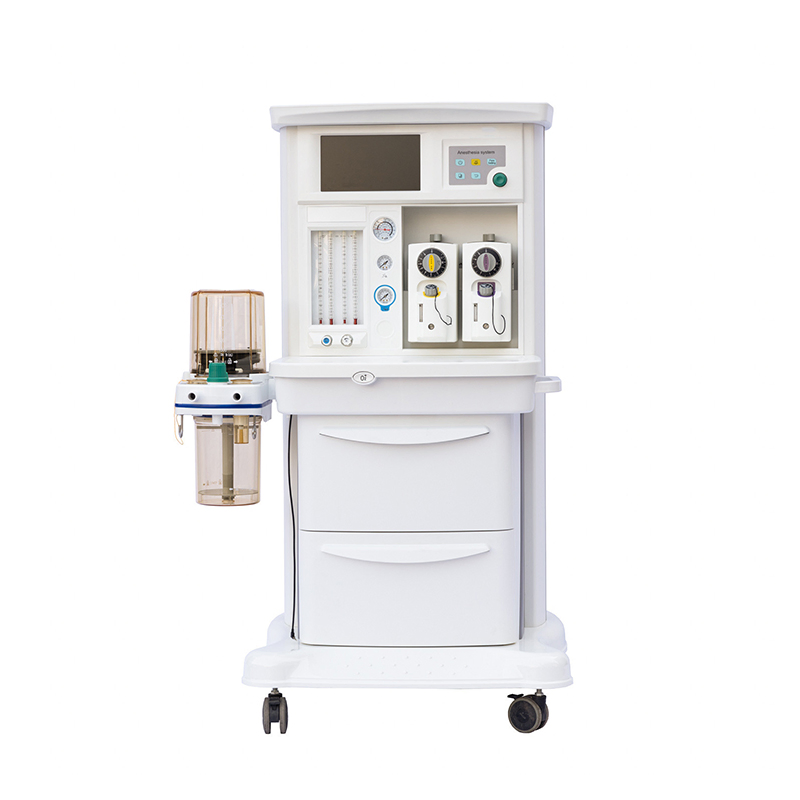

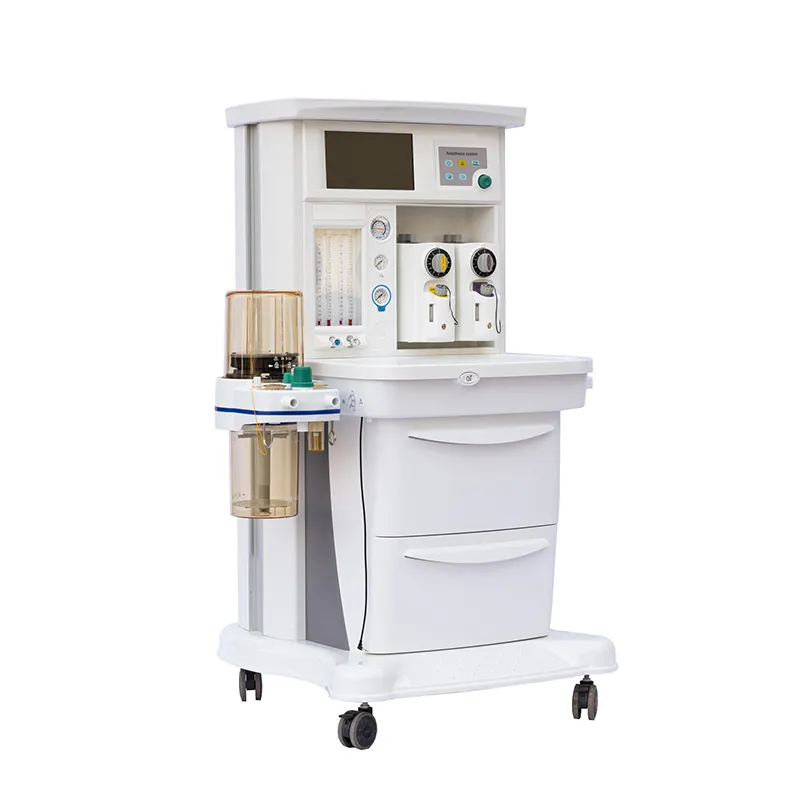

Dimensions: 70*85*140cm | Weight: 65kg
Casters: Front wheels with lock
Screen: 10.1 inch LCD screen | Waveforms: P-T, F-T, V-T
Working Specifications
Power: AC 110V-240V, 50Hz/60Hz
Battery Power: ≥180 mins

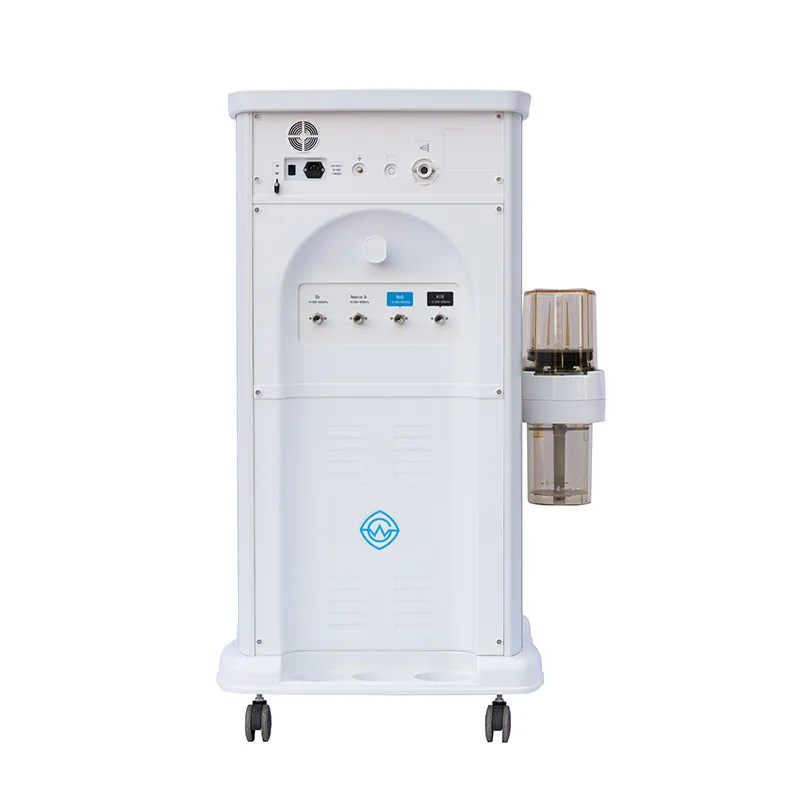

Gas configuration: O2, N2O, Air (Optional)
Pipeline input range: 280-600Kpa (40-85psi)
Ventilator Parameters
Patient range: Adult/Pediatric
Modes: VCV, SIMV, Manual, STAND-BY, A/C
Tidal Volume: 20-1500ml | Pressure: 5-60cmH2O
Respiration Rate: 1-100bpm | I:E range: 4:1-1:8
Hypoxic Guard: N2O cut-off Valve, O2 concentration >25%
Vaporizer: 1 Selectetac, maximum 2 mounts
Frequently Asked Questions
Q1: Which types of patients is the YSAV6201A suitable for?
A1: It is designed for both adult and pediatric patients. Notably, it does not require replacing the drive bellow when switching between adult and pediatric operation.
Q2: How long can the machine operate on battery power?
A2: The built-in battery provides a support time of 180 minutes or more, ensuring safety during power interruptions.
Q3: What ventilation modes are supported?
A3: The unit supports multiple modes including VCV (Volume Control), SIMV (Synchronized Intermittent Mandatory Ventilation), A/C (Assist/Control), Manual, and Stand-by.
Q4: Does the system include safety monitoring for oxygen levels?
A4: Yes, it features a hypoxic guard system with an N2O cut-off valve to ensure that O2 concentration remains above 25%.
Q5: Is the breathing circuit integrated?
A5: Yes, it features an integrated breathing circuit with an APL valve, which provides excellent tightness and reliability.

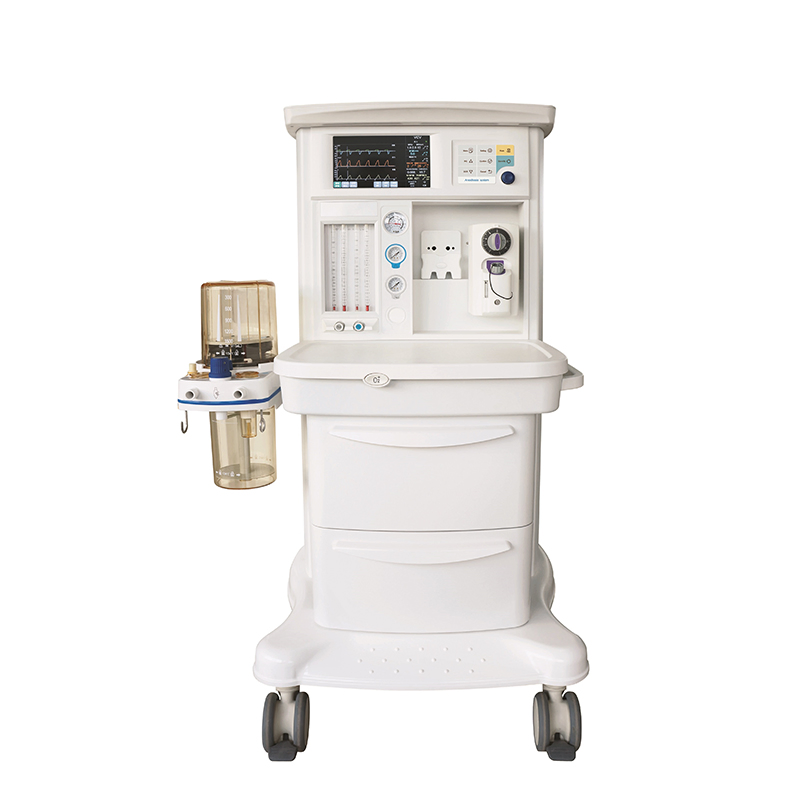

Q6: What can be monitored on the 10.1-inch screen?
A6: The screen displays real-time waveforms (P-T, F-T, V-T) and parameters such as VT, MV, Paw, BPM, and compliance.
